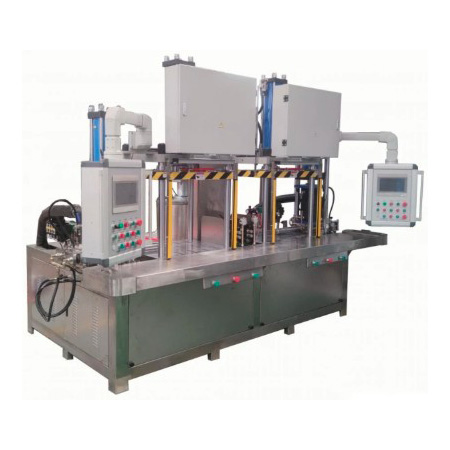

25T Intelligent Double-Station Wax Injection Machine

This high quality 25T Intelligent Double-Station Wax Injection Machine adopts Japanese NOK sealing ring for all oil cylinders, wax injection cylinder and wax supplement cylinder. There are two modes: fast and slow. Wax injection pressure and wax injection flow are digitally controlled, which can be closed. It has the linkage function of robot taking mold. The temperature control adopts independent heating and cooling insulation cylinder, which effectively avoids the problems of valve cracking and carbon deposition of heat transfer oil in previous equipment.

Long after-sales service and intimate service

1. Warranty period: 1 year for the whole machine, additional guarantee for core parts.
2. Technical support: provide installation video, operation manual, support remote guidance.
3. Money Back Guarantee: We guarantee money back if the product quality is not up to the agreed standard.

Machine parameters

1. Maximum clamping force is 60 tons;
2. Maximum mold opening height of 800 mm;
3. The minimum clamping height is 90 mm.
4. the size of the lower workbench is 1000 * 1000mm;
5. the upper platen size is 1000 * 1000mm;
6. The lower table movement stroke is 1000mm;
7. Nozzle expansion range: 0~400 mm;
8. Nozzle lifting range: 0~ 300mm;
9. Wax storage tank maximum usable volume of 120 liters;
10. The maximum single wax injection volume is 20 liters;
11. Wax injection pressure: 0~10 MPa;

FAQ

Q: Can this machine fit our special mold?
A: Absolutely. We will provide technical interface to ensure that this equipment can perfectly match your production process.

Q: Can duplex bits set different parameters independently?
A: Yes, each station can independently set injection pressure, pressure holding time and other parameters.
