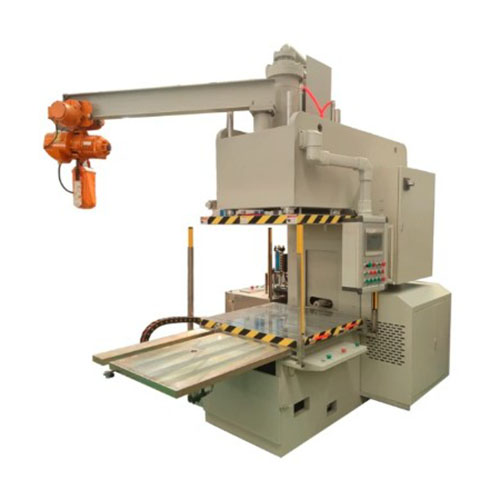

Single-Station C-Type 40T Wax Injection Machine

The hydraulic oil tank of this Single-Station C-Type 40T Wax Injection Machine is made of stainless steel. The hydraulic oil is directly cooled by thick copper pipe, avoiding the potential safety hazards of icing and water ingress in the previous hydraulic oil cooler. Among them, the adjustable temperature parameters include wax storage cylinder temperature, preparation temperature and wax mold injection temperature. The mold cylinder adopts fast running oil cylinder and is equipped with 1 ton mold lifting device.

Core Advantages

1. 40 tons strong clamping:
This C-type 40-ton wax injection machine has an industry-leading clamping force of 40 tons, ensuring that even the largest size mold can be tightly fitted. It is specially designed for large, deep cavity molds, fundamentally eliminating the risk of mold expansion, ensuring accurate wax mold size, and laying a perfect foundation for subsequent processes.

2. C-shaped structure, easy to operate:
Its three-sided open design, mold lifting, maintenance space is sufficient, compared with the column structure, the operation field of vision will be wider, the movement is more free, especially suitable for the production scene that requires frequent mold replacement.

3. Intelligent temperature control:
The PID intelligent temperature control can ensure that the wax material is always in the best injection state, and the injection pressure, speed and holding time can be adjusted independently and accurately. Its formula memory function can also ensure zero error of parameters during repeated production.

Equipment Parameters

1. Maximum clamping force: 40 tons;
2. Maximum mold opening height: 800 mm;
3. Minimum clamping height: 90 mm;
4. Lower worktable dimensions: 1000 × 1000 mm;
5. Upper pressure plate dimensions: 1000 × 1000 mm;
6. Lower worktable travel: 1000 mm;
7. Nozzle expansion range: 0–400 mm;
8. Nozzle lifting range: 0–300 mm;
9. Maximum usable wax reservoir volume: 120 liters;
10. Maximum single wax injection volume: 20 liters;
11. Wax injection pressure: 0–10 MPa;

FAQ

Q: What is the largest mold size that can be installed?
A: Our standard mold size is 650×650mm. Custom sizes are available upon request.

Q: What is the power consumption of the device?
A: The total power is approximately 15kW, but the specific energy consumption depends on the frequency of use.
