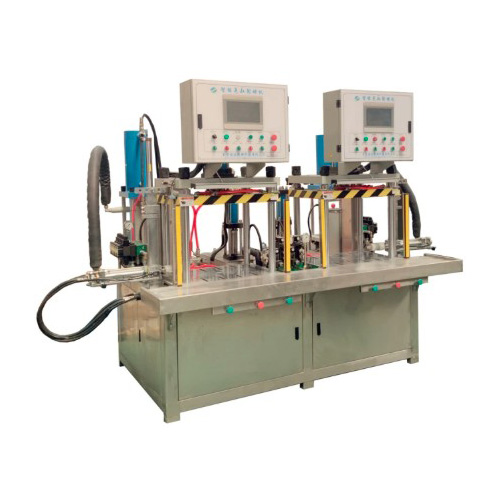

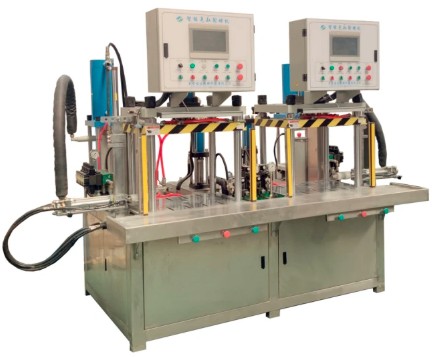

Double-Station 16T Wax Injection Machine

Double-Station 16T Wax Injection Machine wax injection pressure is 0~ 10MPa, all oil cylinders, wax injection cylinder and wax supplement cylinder are Japanese NOK seal ring, and the contactor is French Schneider Electric products, touch screen is Taiwan vinylon material, touch screen +PLC temperature control module temperature control mode, wax injection and preparation temperature control using independent heating cooling insulation cylinder, to avoid the problem of valve stagnation in the previous equipment.

Equipment Advantages

1. Double efficiency, halve cost:
Traditional single-station machines wait half the time, while our dual-station design reduces waiting time to almost zero.
2. Stable super high quality:
We are equipped with a strong clamping force of 16 tons to ensure that the mold does not move during the injection process, fundamentally eliminating the generation of flash and burr. Combined with our carefully tuned PLC computer control system, we ensure that each wax pattern produced is completely consistent in precision and quality.

Equipment parameters

1. Maximum clamping force is 16 tons;
2. Maximum mold opening height of 500 mm;
3. The minimum clamping height is 70 mm;
4. the size of that platen and the low workbench is 710 * 500 mm;
5. the cavity size is 550 * 500 * 500 mm;
6. The sliding plate moves a distance of 500 mm;
7. The nozzle expansion range is 0~250 mm;
8. the lifting range of the nozzle is 0 - 200mm;
9. the wax making cylinder has a size of phi 600 * 800 mm;
10. The maximum single wax injection is 5 liters.

Frequently Asked Questions

Q: Is it troublesome to change the mold? Will it affect efficiency?
A: Not at all, because our dual-station design is independent, and mold changes are carried out at one station without affecting the normal production of the other station at all, achieving seamless connection.

Q: Are there any special requirements for the environment and electricity in the workshop?
A: There are no special requirements. We are designed according to general industry standards. It can be operated stably by connecting the existing three-phase electricity in your workshop.

Q: What if something goes wrong?
A: We offer a 12-month warranty on the whole machine. Once a problem arises, we first "diagnose" it via remote video, and most minor problems can be solved online. If necessary, we will arrange to send the spare parts first time and provide clear replacement instructions to solve the problem quickly.
