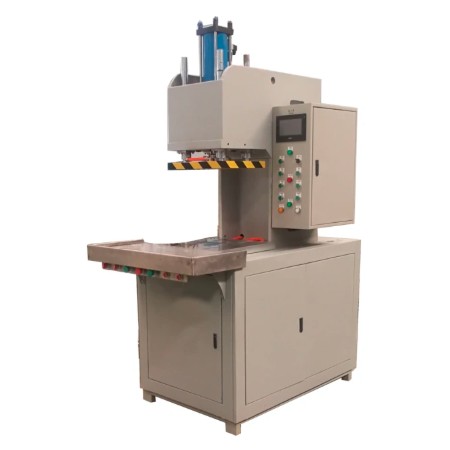

Single-Station C Type 20T Ceramic-Core Wax Injection Machine

If you want the perfect combination of wax and pre-made ceramic cores, choose Jar Hing as your manufacturer and choose our Single-Station C Type 20T Ceramic-Core Wax Injection Machine. This high-quality equipment first accurately fixes the ceramic core in the mold, and then injects wax at high pressure to form a wax mold with complex internal cavities. This ceramic core does not melt in the subsequent high temperature firing, but acts as a support to ensure that the complex flow channels and cavities inside the casting can be formed that cannot be made by traditional methods.

What Are the Advantages of Jar Hing's Wax Injection Machines During Processing?

1. Wide vision:
Its open C-shaped structure allows people to clearly see the installation process of the mold and ceramic core, ensuring that the ceramic core is placed absolutely accurately.
2. Mold stability:
20 tons of clamping force, specially designed to handle complex molds with ceramic cores, during high pressure wax injection, it can firmly lock the mold, prevent wax from leaking from the gap, and also protect the fragile ceramic core from being crushed by pressure.
3. Multiple design:
It has dual nozzle and multi-nozzle design, which can be configured with multiple independent wax injection nozzles for complex ceramic core molds. In this way, wax can be injected from different directions and different time points to avoid wax material impact damage to the ceramic core, and wax material evenly wrapped every detail.
4. Precise guidance and positioning:
After high-precision machining and heat treatment, the guide post and template of the machine ensure the concentricity and flatness of the mold, which directly determines the accuracy of the combination of wax mold and ceramic core, which is the key to the success of complex parts.

FAQ

Q: What is the essential difference between this machine and ordinary wax injection machine?
A: The biggest difference is that it can handle ceramic cores, its pressure control is also finer, the guidance accuracy is higher, and it can also be equipped with multiple nozzles to protect the fragile ceramic cores during wax injection and ensure their accurate position.

Q: My product is very complicated, can you guarantee to make qualified wax model?
A: We can't guarantee 100%, but we will provide sample injection service. You can send the mold and ceramic core, we help you in the factory trial production, until the qualified samples, and then decide whether to buy.

Q: Will 20 tons of clamping force damage the ceramic core?
A: Specially optimized pressure curve to effectively protect ceramic cores.

Q: Is the equipment corrosion resistant?
A: The key parts of the machine have been specially treated to deal with ceramic slurry.

Q: Does it meet aerospace standards?
A: It has been supplied to many aerospace enterprises, and the quality is absolutely reliable.
