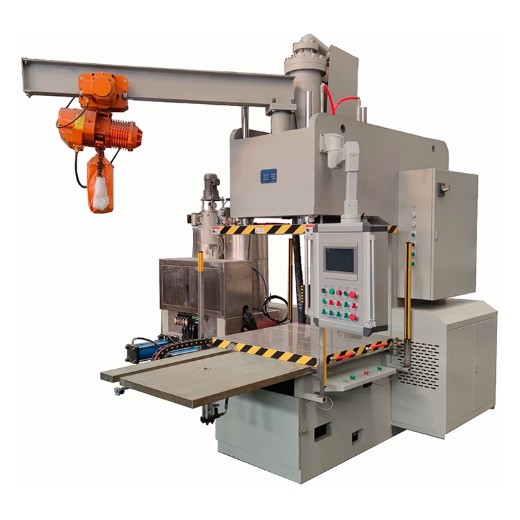

Single-Station C-Type 60T Wax Injection Machine

Single-Station C-Type 60T Wax Injection Machine's wax mold injection machine platen, workbench and nozzle advance and retreat parts are all processed by chrome plating process, temperature control is selected as independent heating cooling insulation cylinder, so as to avoid the problems of valve cracking and heat transfer oil carbon deposition in the past equipment. The hydraulic oil tank is made of stainless steel, and the hydraulic oil is directly cooled by thick copper pipe, which greatly avoids the potential safety hazards of icing and water ingress in the past hydraulic oil cooler.

Reasons for Choosing Jar Hing

1. Quality assurance: international standards, quality commitment.
2. Authoritative certification: passed ISO9001 quality management system certification, SGS annual audit.
3. Export quality: 100% export standard, exported to 35 countries around the world.
4. Rigorous manufacturing: Each device must undergo 72 hours of continuous testing before it is allowed to leave the factory.

Application Areas

1. Heavy Machinery: Structural components and bases for large equipment.
2. Energy Equipment: Pump and valve housings, turbine components.
3. Shipbuilding: Propellers, marine fittings.
4. Aerospace: Engine components, structural frames.

Equipment Parameters

1. Maximum clamping force: 60 tons;
2. Maximum mold opening height: 800 mm;
3. Minimum clamping height: 90 mm;
4. Lower worktable dimensions: 1000 x 1000 mm;
5. Upper pressure plate dimensions: 1000 x 1000 mm;
6. Lower worktable travel: 1000 mm;
7. Nozzle expansion range: 0–400 mm;
8. Nozzle lifting range: 0–300 mm;
9. Maximum usable volume of the wax storage cylinder: 120 L;

FAQ

Q: How many molds can the equipment support?
A: Standard template 800× 800mm, if there are special needs can be customized to 1000× 1000mm.

Q: What is the power consumption of the equipment?
A: The whole machine power is about 18kW, equipped with energy-saving system.
