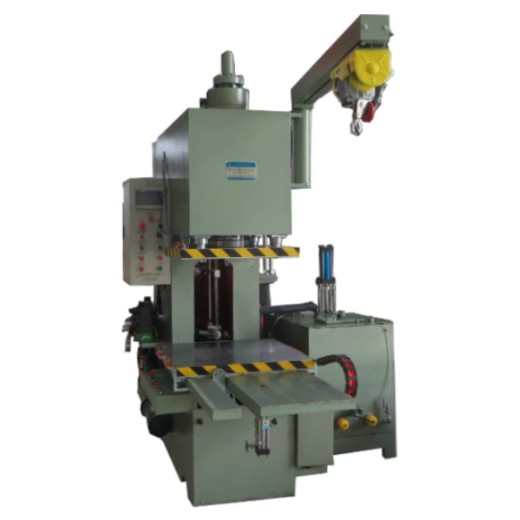

Type C No-Cylinder Wax Injection Machine

Jar Hing's Type C No-Cylinder Wax Injection Machine has a maximum clamping force of 20t, a maximum opening height of 590 mm and a minimum clamping height of 90 mm for the mold, a lower table size of 800 x 800 mm, an upper platen size of 600 x 600 mm, a lower table travel of 800 mm, a nozzle expansion range of 0 to 300mm, a nozzle lift range of 0 to 300 mm, a wax storage cylinder maximum usable volume of 120L, The maximum wax injection volume per injection is 7 liters.

Design Features

1. No oil leakage worries:
It cancels the hydraulic system, eliminates oil leakage from the root, the workshop environment is cleaner, meets the requirements of modern production, and no longer has to worry about hydraulic oil pollution products and the environment.
2. Precise control:
The servo motor of the machine is directly driven, the pressure control accuracy can reach ±0.5%, and the injection speed and pressure curve can be programmed to control, so the repeatability is extremely high, ensuring the consistency of mass production.
3. The operation of C-type structure makes maintenance more convenient. The three-sided open design makes it easier to install and debug the mold.
Because of the simple structure, the maintenance workload is reduced by 70%, and the area occupied is small. It is very suitable for workshops with limited space.

FAQ

Q: Do operators need special training?
A: No, we will provide complete training. It only takes one day for ordinary workers to learn easily.

Q: Do I need a special foundation?
A: No, we will provide shock absorption design, ordinary hardened ground can be installed.

Q: What is the life span of the cylinderless design?
A: Using high-quality servo motor, design life can reach more than 10 years, far more than hydraulic system.

Q: Is it compatible with existing tools?
A: Fully compatible, the installation interface is consistent with traditional equipment.
