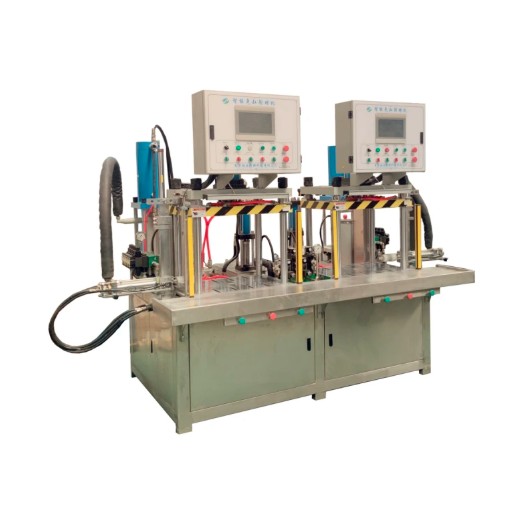

Double-Station Four-Column Type 16T Wax Injection Machine

Double-Station Four-Column Type 16T Wax Injection Machine's dual-station design is like installing two brains and a heart on the production line. When one station is precisely injecting wax, the other station can simultaneously perform preparatory work such as picking up parts, cleaning molds, and placing inserts.

Core Features

1. Efficient production of one function against two:
Dual-position alternating operation allows the cost of investing in one piece of equipment to obtain the output of nearly two units, while the factory space and power consumption are only counted as one.

2. Solid four-column structure:
Four columns ensure extreme stability in clamping forces and motion compared to two-column or cantilever structures. This means that the wax pattern produced is accurate in size and extremely small in deformation, laying a perfect foundation for subsequent shell making and casting links, and fundamentally reducing the rejection rate.

Equipment parameters

1. The maximum clamping force is 16t;
2. The maximum height of the template opening is 500 mm;
3. Minimum clamping height of 70mm;
4. The size of the pressing plate and the lower workbench is 720 * 510mm;
5. The mold space is 570×510×500 mm.
6. The size of the auxiliary workbench is 2200×380mm;
7. The nozzle expansion range is 0~200 mm.
8. The lifting range of nozzle is 0~200 mm.
9. Wax tank maximum use volume of 100L;
10. The maximum amount of wax in a single injection was 5 L.
11. Wax injection pressure: 0~10MPa.

Frequently Asked Questions:

Q: Can you accept small orders?
A: Yes, we'd be happy to accommodate your small order requirements.

Q: Is the equipment complex to operate?
A: It is not complicated at all. We use a humanized PLC touch screen interface and key parameters are set with one button.

Q: Can we customize the parameters according to our special wax materials and molds?
A: Yes, we can. We provide deep customization service. You only need to provide your process requirements, and our technical team can customize the optimal parameters for you.
