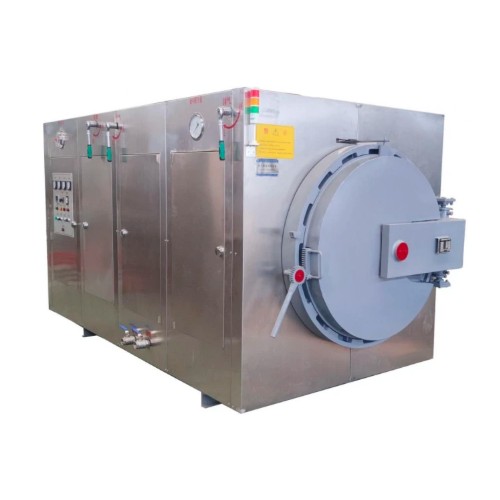

When choosing Jar Hing, you are choosing a durable wax processing machine supplier. The inner liner size of our 1000mm Mechanical Safety Interlock Dewaxing Kettle Machine is 1000× 1200mm, which is very suitable for large-scale formwork cluster dewaxing. Its design pressure is 0.85MPa. The working temperature is generally 160-200℃. It can also be adjusted independently. It has three safety devices: mechanical interlock, safety valve and pressure gauge. The door opening mode is hydraulic auxiliary side door opening, which can save 70% effort. The insulation layer is also added with 80mm thick ceramic fiber cotton.
1. Safe and secure:
1000mm Mechanical Safety Interlock Dewaxing Kettle Machine has 7 mechanical interlocking devices, the door, steam and pressure will be three-way linkage, as long as one operation is not done, the steam valve will not open, so as to completely eliminate the risk of misoperation.
2. Energy saving and steam saving:
Exclusive honeycomb insulation layer plus three-dimensional circulation system, save 30% steam than ordinary dewaxing kettle, save steam cost in one year, and buy a new equipment.
3. Quality:
The whole kettle body is made of 316 stainless steel with a thickness of 6 mm. The weld will undergo X-ray inspection, corrosion resistance and high pressure resistance. It will not leak steam after 5 years of continuous use.
The simple bolt lock of ordinary equipment is easy to be washed open by steam, but the mechanical linkage is locked, and the door cannot be opened until the pressure is exhausted.
In terms of insulation, the insulation effect of ordinary dewaxing machine is poor, the workshop will be as hot as sauna, and the outer wall temperature of Safety Interlock Dewaxing Kettle Machine is ≤45℃, even in summer, it can be operated comfortably.
Ordinary machinery needs to overhaul the sealing system in three years, and the seals of our machine are replaced free of charge within five years.
Q: What if the mechanical interlock is stuck?
A: We have designed bidirectional redundant mechanism. When the main interlock fails, the standby interlock will automatically take over and provide special release tools.
Q: How much is the specific steam consumption?
A: ≤85kg steam per hour under full load operation.
Q: Is this machine suitable for processing water glass formworks?
A: Suitable, it has anti-scaling design, specially optimized for water glass system steam pipeline.
Q: Does installation require special foundation?
A: Ordinary concrete floor is enough. You can provide us with foundation drawings to guide installation directly.
