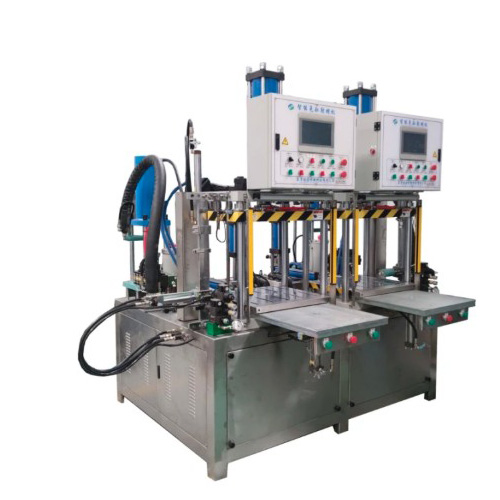

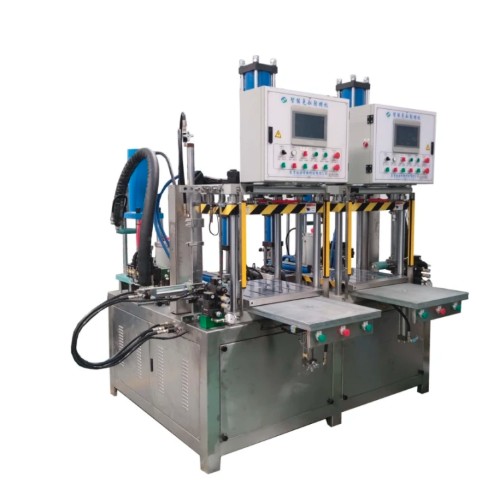

20T Wax Injection Machine with Skateboard

The clamping force of this 20T Wax Injection Machine with Skateboard is 20T, the stroke of the slide plate is about 1000mm, which ensures the complete separation of the two stations. The second largest mold size is 500×500× 400mm. It has a customizable mold opening stroke, which can meet the needs of different height molds, and multi-point precise temperature control ensures uniform wax flow. The power supply is generally 380V/50Hz, but it can also be customized according to the export country.

Workflow

1. Start preparing:
Fix the mold on one end of the slide plate, and prepare for cleaning, spraying release agent, etc. At the same time, the wax injection nozzle is located at the other end of the slide plate.
2. To perform sliding positioning:
After preparation is complete, only need to gently push the lower slide plate, so that the mold accurately moved to the injection nozzle directly below.
3. Waxing:
The machine automatically completes a series of precise actions such as mold closing, injection, pressure holding, etc. The strong clamping force of 20 tons ensures that the mold does not move under high pressure.
4. End:
After pressure holding, pull back the slide plate to its original position for wax pattern removal and subsequent cleaning.

Advantage

1. Experienced
This machine condenses our Shanghai Quyan Industrial Co., Ltd., 13 years of experience in serving customers around the world. We understand the characteristics of slurry, understand the shrinkage rate of wax, and understand all kinds of difficulties encountered by customers in production.

2. Design excellence
Stable mechanical and temperature control design, the whole machine adopts high-quality steel and reasonable rib plate structure, to ensure that the equipment does not deform and shake under long-term high-load operation. PID intelligent temperature control is adopted for wax barrel and pipeline, and the temperature difference is controlled within ±1°C to ensure that the fluidity of wax material is always in the best state and ensure the quality of wax mold from the source.

Equipment parameters

1. The maximum clamping force is 20t;
2. The maximum height of the template opening is 500 mm;
3. Minimum clamping height of 70mm;
4. the size of that platen and the low workbench is 770 * 600mm;
5. The mold space is 620×600×500 mm.
6. The nozzle extension range is 0~200 mm.
7. The lifting range of nozzle is 0~200 mm.
8. Wax tank maximum use volume of 100L;
9. The maximum amount of wax in a single injection was 5 L.
10. Wax injection pressure: 0~10MPa.

Packaging and delivery

We use strong wooden export packaging, waterproof and rust-proof treatment inside, to ensure that equipment can safely reach customers across the ocean.

If there is a failure, how long will the after-sales response speed take?
We promise to respond to customers' problems within 12 hours, most of which can be solved through remote video guidance. If accessories are really needed, we will arrange delivery at the first time and solve the problem as soon as possible.
