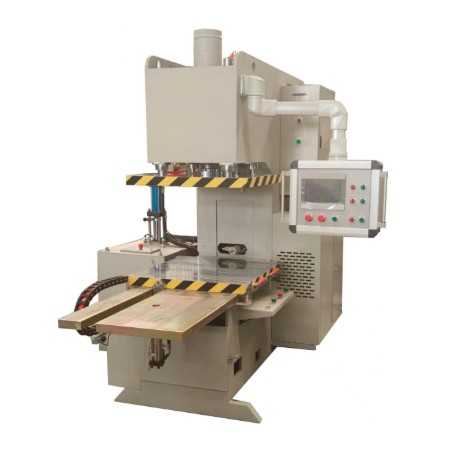

Single-Station C-Type 20T Wax Injection Machine

The Single-Station C-Type 20T Wax Injection Machine is a compact machine designed for small castings, R&D prototyping and teaching experiments. Although this wax injection machine operates in a single station and has a capacity of only 20 tons, it is efficient and accurate in manufacturing. It is ideal for wax injection molding.

Suitable Application Areas

1. Jewelry: rings, pendants and other precision jewelry castings.
2. Dental care: dental crowns, dental bridges and other dental prostheses.
3. Electronic components: connectors, micro-interface and other precision parts.
4. Scientific research and teaching: sample production in university laboratories and R&D centers.
5. Arts and crafts gifts: small badges, souvenirs, etc.

Equipment Parameters

1. Maximum clamping force: 20 tons;
2. Maximum mold opening height: 590 mm;
3. Minimum clamping height: 90 mm;
4. Lower worktable dimensions: 800 × 800 mm;
5. Upper platen dimensions: 600 × 600 mm;
6. Lower worktable travel: 800 mm;
7. Nozzle expansion range: 0–300 mm;
8. Nozzle lifting range: 0–300 mm;
9. Maximum usable volume of wax reservoir: 120 liters;
10. Maximum single injection volume: 7 liters;
11. Injection pressure: 0.5–10 MPa;
12. All cylinders, injection cylinders, and wax replenishment cylinders use Japanese NOK seals;
13. Contactors and relays use French Schneider Electric products;
14. Touch screen uses Taiwanese Weintek material;
15. Temperature control mode: Touch screen + PLC temperature control module;
16. Mold cylinder uses high-speed hydraulic cylinder;
17. Equipped with a 0.5-ton mold lifting device;

FAQ

Q: How powerful is the equipment? Does the regular socket work?
A: Rated power 1.5kW, ordinary 220V socket can be used, very convenient.

Q: What is the minimum size of castings that can be produced?
A: It is most suitable for producing precision small castings between 1 g and 500 g.

Q: Does the equipment require special installation conditions?
A: No special installation is required. You can use it when you turn on the power supply.
