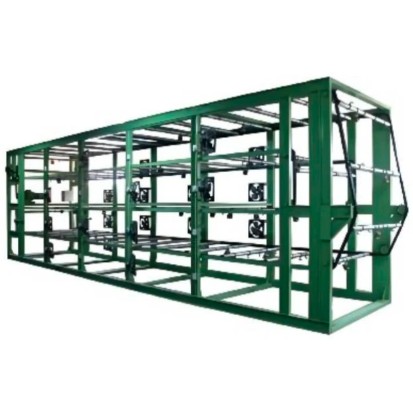

Good Guiding Performance Cross Bar Drying Line

Good Guiding Performance Cross Bar Drying Line adopts 4kw motor + BWED053 speed ratio 1:473 reducer, so that the motor reducer is enlarged, and the drying line is equipped with 5.5KW Morima inverter, so that the drying line running speed becomes adjustable, and the ear plate chain with large roller diameter is adopted, so that the roller falls straight 39.67mm, and the chain plate thickness is 4.8mm, which not only has large bearing capacity, but also has good guiding performance and is not easy to break.

Core Advantages

1. Strong guidance performance:
Jar Hing factory exclusive customized crossbar conveying structure, with high-precision guide rail, workpiece deviation in the conveying process will not exceed 2mm, even if the thin shell will not scratch, deformation.
2. Drying evenly:
The machine adopts the upper and lower double air duct design, the temperature range can be freely adjusted at 40-120℃, and the temperature difference will be controlled within ±2℃, so that the shell drying rate can be directly increased to 99%.
3. Durable and well maintained:
The fuselage is made of 304 stainless steel, corrosion resistance, high temperature resistance, key components are imported brands, normal use within 5 years without overhaul, usually cleaning maintenance only takes 10 minutes, will not delay production.
4. Save energy and worry:
Good Guiding Performance Cross Bar Drying Line, with intelligent temperature control system, to reach the set temperature will automatically thermostat, so than ordinary drying line power saving 20%.

Machine Parameters

1. The center distance between the upper and lower parts of the crossbar axis is 650mm;
2. The center distance between the front and back of the crossbar axis is 762 mm.
3. Length and working size of crossbar is 2000mm;
4. The number of rollers is 48;
5. Drying line chain length 37m;
6. Motor power 4kw;
7. The running speed is 0-800mm/min;
8. Appearance size 10000X 2500 X 2990 mm.

FAQ

Q: Can the length of this drying line be customized?
A: Yes, 3-10 meters can be done, and it can be customized according to your workshop space and capacity requirements.

Q: Can foreign customers supply?
A: Yes, our products have complete export qualification and can provide customs declaration information.

Q: Is it difficult to maintain later?
A: No trouble, just clean the air duct and conveyor chain at ordinary times, check the key parts regularly, and we will also provide maintenance guidance.
