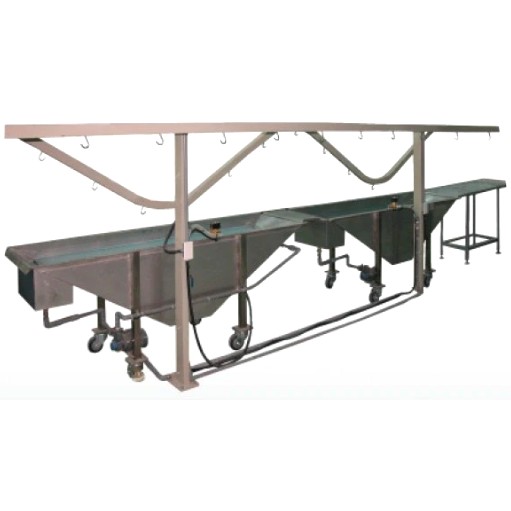

Automatic Wax Tree Cleaning Tank

Designed and manufactured by Jar Hing, this Automatic Wax Tree Cleaning Tank consists of solvent cleaning tank + clean water cleaning tank + drain rack, which can be automatically cleaned and drained with the help of the height rise and fall of the cleaning chain track. The cleaning tank is circularly transported by water pump, and the wax tree fragments are removed by circulating water flow fluctuation opposite to the cleaning chain. The liquid level height of the cleaning tank can be seen according to the size of the wax tree. The liquid level height can be adjusted by using an adjusting plate, and the residual water after the wax tree cleaning can be removed by means of a jet gun. As the drainage frame is designed with slope, the residual water will flow back into the cleaning tank. The cleaning tank is equipped with a liquid level controller.

Equipment Advantages

1. Fully automatic:
After setting the parameters of the machine, the whole cleaning process can be completed by itself, and only one worker can manage several machines, which greatly reduces labor costs.
2. Clean up:
The cleaning tank adopts high pressure spraying and ultrasonic double cleaning technology, and the residual wax chips and dust in the wax tree crevices can be cleaned, and the cleaning qualified rate is as high as 99%.
3. Protect wax trees from damage:
We specially adjust the spray pressure and frequency, so that it can be cleaned without damaging the fragile wax pattern, which perfectly solves the problem that manual cleaning is easy to damage wax trees.
4. Double efficiency:
Traditional manual cleaning of a wax tree takes more than 10 minutes, while our equipment only takes 3 minutes, and it is continuous operation without gaps, which directly increases production efficiency by more than 3 times.
5. Energy saving and environmental protection:
Its cleaning solution can be recycled, saving 60% of consumables than manual cleaning, and low noise, making the workshop environment more comfortable.

Machine Parameters

1. The cleaning tank is made of stainless steel, durable and easy to clean.
2. Design operating speed: 0.2m/min to 6m/min;
3. Line motor power: 1.5kw, variable frequency speed regulation; water pump power: 0.4kw;
4. Module size: 450 * 450 mm;
5. Module spacing: 0.6m;
6 The main materials of the drying line are: closed track 16Mn, chain 16Mn or 20gr;
7. Design single point lifting: 40 kg.
