Stable Convenient Positioning Lifter Slurry Mixing Machine

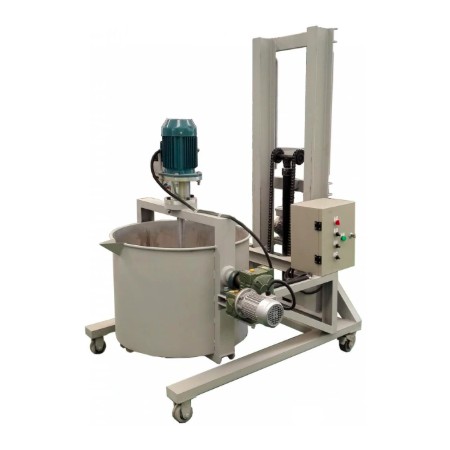

Jar Hing is a factory with R & D innovation ability. We have upgraded the new system of Stable Convenient Positioning Lifter Slurry Mixing Machine. It adopts hydraulic cylinder, which is stable in transmission and convenient in positioning. The mixing blade is made of corrosion-resistant stainless steel, and the mixing drum can rotate and tilt 180°. Through the lifting design, it can realize fast feeding, uniform mixing and convenient cleaning. It is greatly improved compared with traditional mixers.

Equipment Advantages

800mm Low Noise Convenience Slurry Dipping Machine has a pulp drum diameter of 770mm and a drum depth of 620 mm. The inner pulp drum is made of stainless steel with a thickness of 3 mm. The volume is 250L. The rotation speed is 23.3 r/min. The adjustable blade lifting range is 0-380 mm. The new driving structure adopted reduces the equipment power. The pulp drum is pressurized by bearings, which increases the weight of pulp and pulp drum. The output shaft of the reducer only bears radial load. Not only the stress is reasonable, but also the noise is low, and the service life will be longer.

Equipment Design Features

1. High maintenance efficiency:
Slurry mixer has a lifting structure, so that the mixing bucket can be freely lifted, feeding lower bucket body, save effort, and cleaning only need to lift the base, very easy.

2. Slurry consistency easy to prepare:
The machine adopts frequency converter to control the rotation speed. When high shear force is needed, the rotation speed is increased. When gentle mixing is needed, the rotation speed is decreased. The fluctuation of slurry viscosity is controlled within ±2.

3. Durable:
The core motor of the machine adopts sealed dustproof structure, with 3kW industrial power, supporting 8 hours of continuous operation, especially suitable for batch shell production line.

FAQ

Q: Does it support barrel size customization?
A: Support, only tell us your specific needs, can be customized.

Q: How stable is the machine speed?
A: Its frequency converter ensures that the speed fluctuation is less than 1%.

Q: How do the stable, convenient positioning lifter slurry mixing machine and slurry tank match?
A: Its outlet flange is designed according to international standards and can be adapted to the main slurry tank interface.

Q: Does the training include process parameter settings?
A: We provide free of charge "Silica sol slurry stirring parameters guide," which contains temperature, speed, time ratio table.
